Starting up

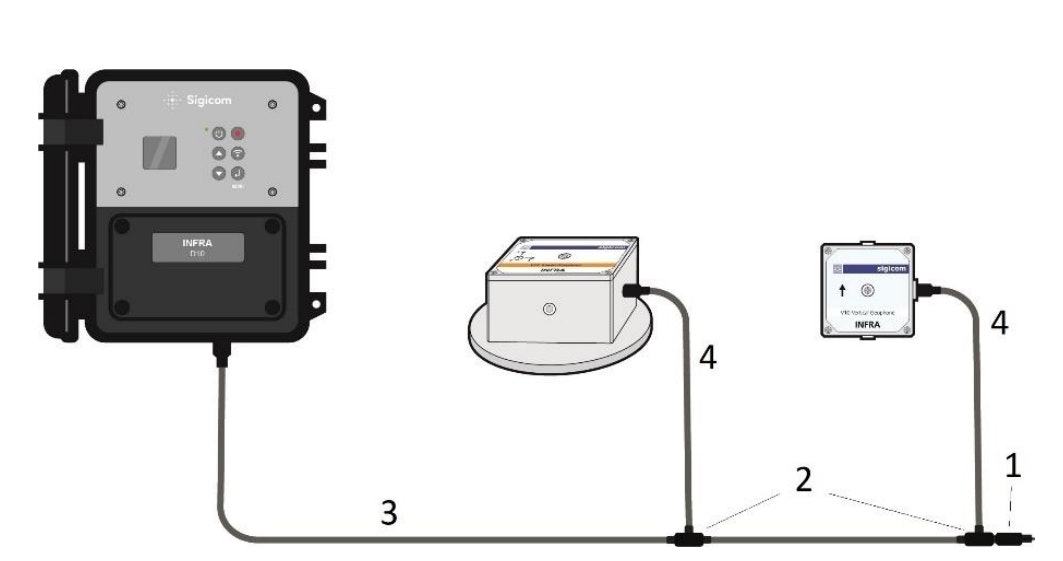

Before starting the INFRA D10, connect the sensors
Maximum length of a drop cable is 5 meters.

After mounting
It's recommended to start the instrument and check:

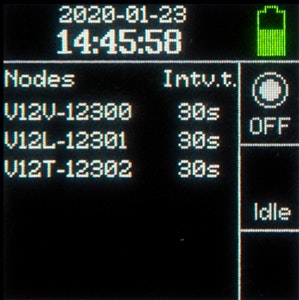

Number of nodes, battery level. Select Datalogger status in the Menu.
Clock Set
INFRA Net communication
Possible errors and warnings. Select Errors in the Menu

Begin monitoring

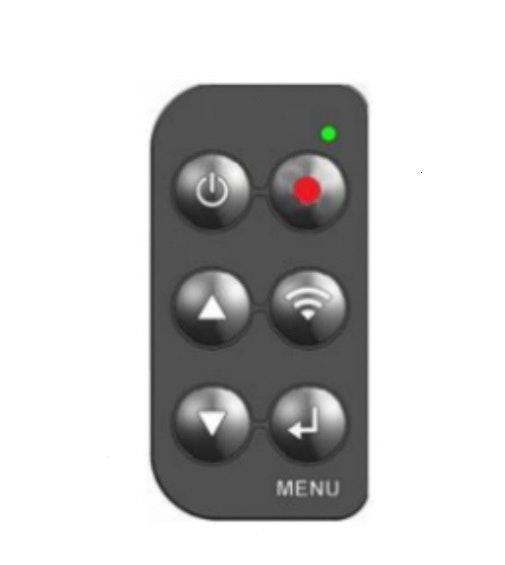

To begin monitoring, press the black key with a red circle. D10 will proceed to transmit its status to INFRA Net.
Troubleshooting
If monitoring fails to start when pressing, make sure:
Main screen is open
GUI isn't locked by passcode
Battery level is sufficient
