Setting up INFRA Master, Mini, Micro

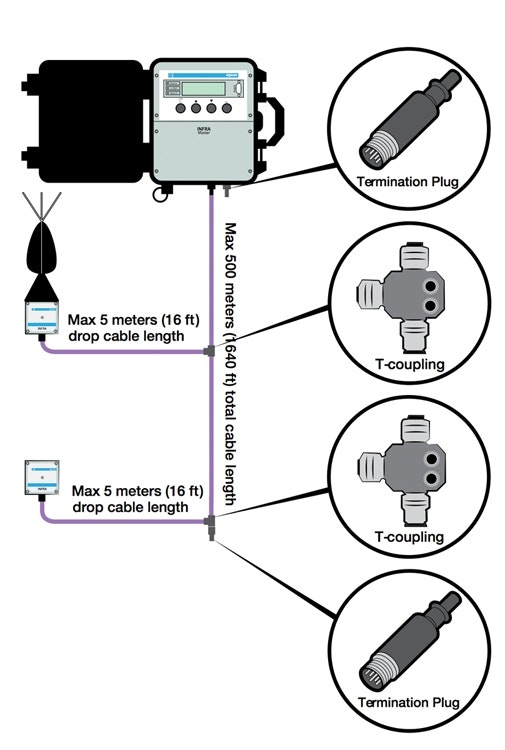

Before starting the INFRA Master/Mini/Micro, please make sure to have the sensors connected

Start-up

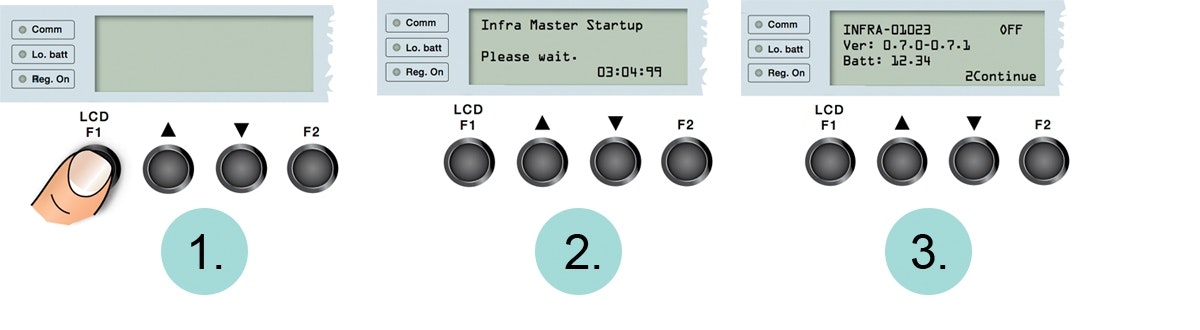

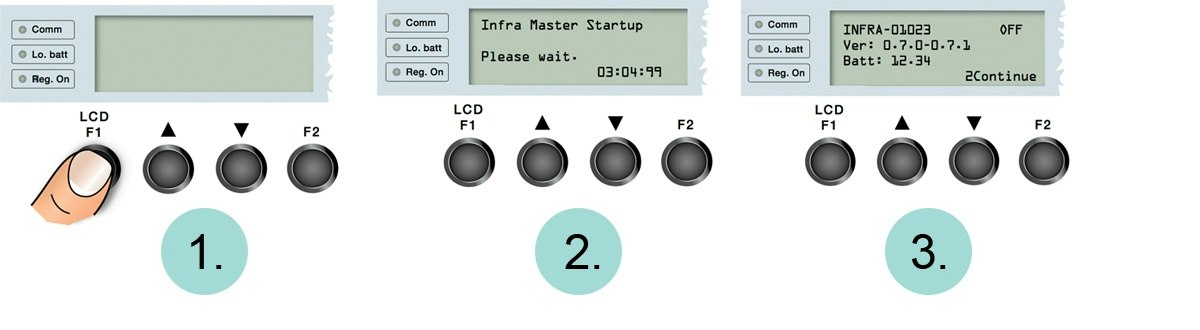

Press F1/LCD to start the LCD display.
If REG is OFF, this Start-up menu is shown for 10-30 seconds. INFRA Master/Mini/Micro now connects to all nodes to read their type, serial no., and individual settings. (The lower right text is debug information.)
When all parts of system are connected, a status menu will be shown for some seconds (can be bypassed by pressing F2). Possible warnings and non- standard settings are shown with alternating flashing texts.
Two working modes
REG OFF
All connected nodes are passive with no data registration happening. INFRA Master/Mini/Micro automatically shuts off after a few minutes when idle, to save battery power
REG ON
All connected nodes measure & register data according to their individual specs. and settings. INFRA Master/Mini/Micro automatically shuts off after a few minutes when idle, to save battery power but data registration continutes

Toggling REG ON/OFF with Quick Reg ON

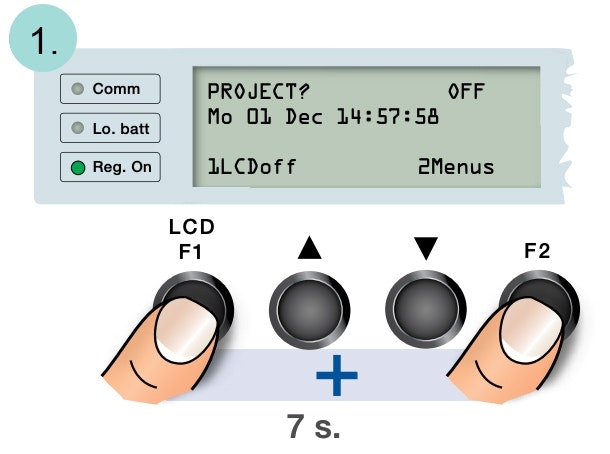

From the Main Menu, hold [F1] and [F2] simultaneously for 7 seconds to toggle between REG ON and REG OFF.
The Master automatically returns to the Main Menu.

Toggling REG ON/OFF with Quick Reg OFF
In the Master Unit category enter Working Mode Setup, which is the first menu in this category.
The password is a sequence of [UP] and [DOWN] presses: ▲ ▼ ▲ ▼ ▼ ▲ ▼ ▲

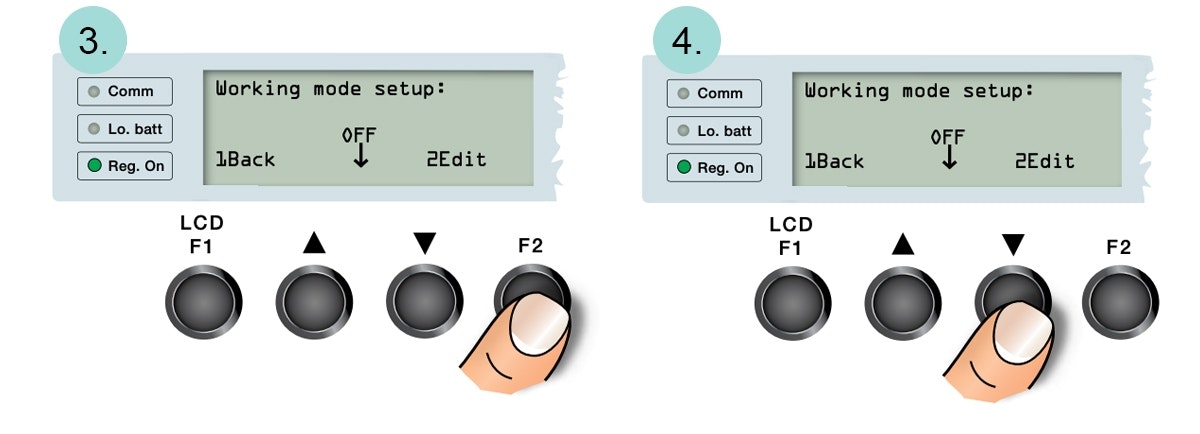

Press [F2] to Edit.
Press [DOWN] to change OFF to ON, or vice versa.
Press [F2] to Save the new setting.
