Setting up INFRA S50

Sigicom AcademyProductsINFRA S50

Starting up

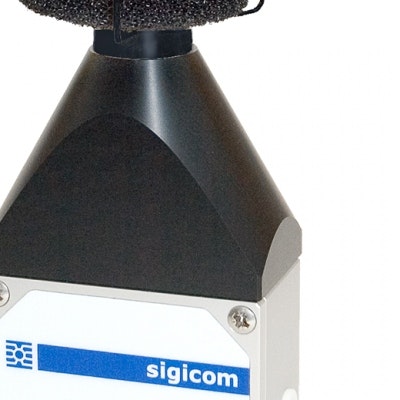

  1. Connect our S50 Sound Level Meter(s) with an INFRA Datalogger using any of the available INFRA Sensor Cables.

  2. Start the datalogger and wait for the initialization process to finish.

  3. Under the menu Nodes you'll find your S50 unit(s) as SND S50-, where SND is the customer string and the serial number.

  4. Select SND S50- in order to choose Standard (S01, S02, etc.). Then, for the chosen standard, select Interval time, Record time and Upper threshold level (value and on/off). It is also possible to change the customer string.

  1. Press REG ON, to initiate measuring.
